EQ SWT

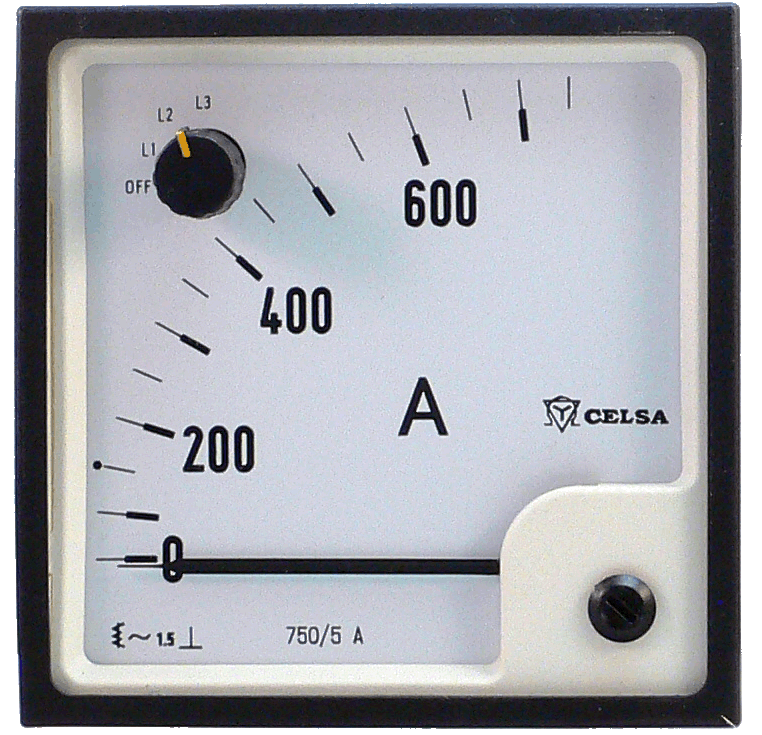

They are an ammeter for measuring the current in each phase of a 50-60 Hz three-phase line. Three-phase voltmeters are used for measuring the voltages between phases, or phase-phase and phase-neutral in a line. They incorporate a switch in order to select the wires between which the measurement is desired.
The EQ..n SWT also has a position of disconnection in the switch (OFF). They indicate the rms value of the voltage, even with high harmonics, with a minor influence on the accuracy.

Model Moving iron aminstruments with integrated switch
Positions 4 (L1;L2;L3) + OFF
Scale 90º
Class 1.5
Dimensions 72 x 72 / 96 x 96 mm
TECHNICAL DATA
DOWNLOAD
GENERAL CHARACTERISTICS
DOWNLOAD
Model Moving iron aminstruments with integrated switch
Positions 4 (L1;L2;L3) + OFF
Scale 90º
Class 1.5
Dimensions 72 x 72 / 96 x 96 mm
