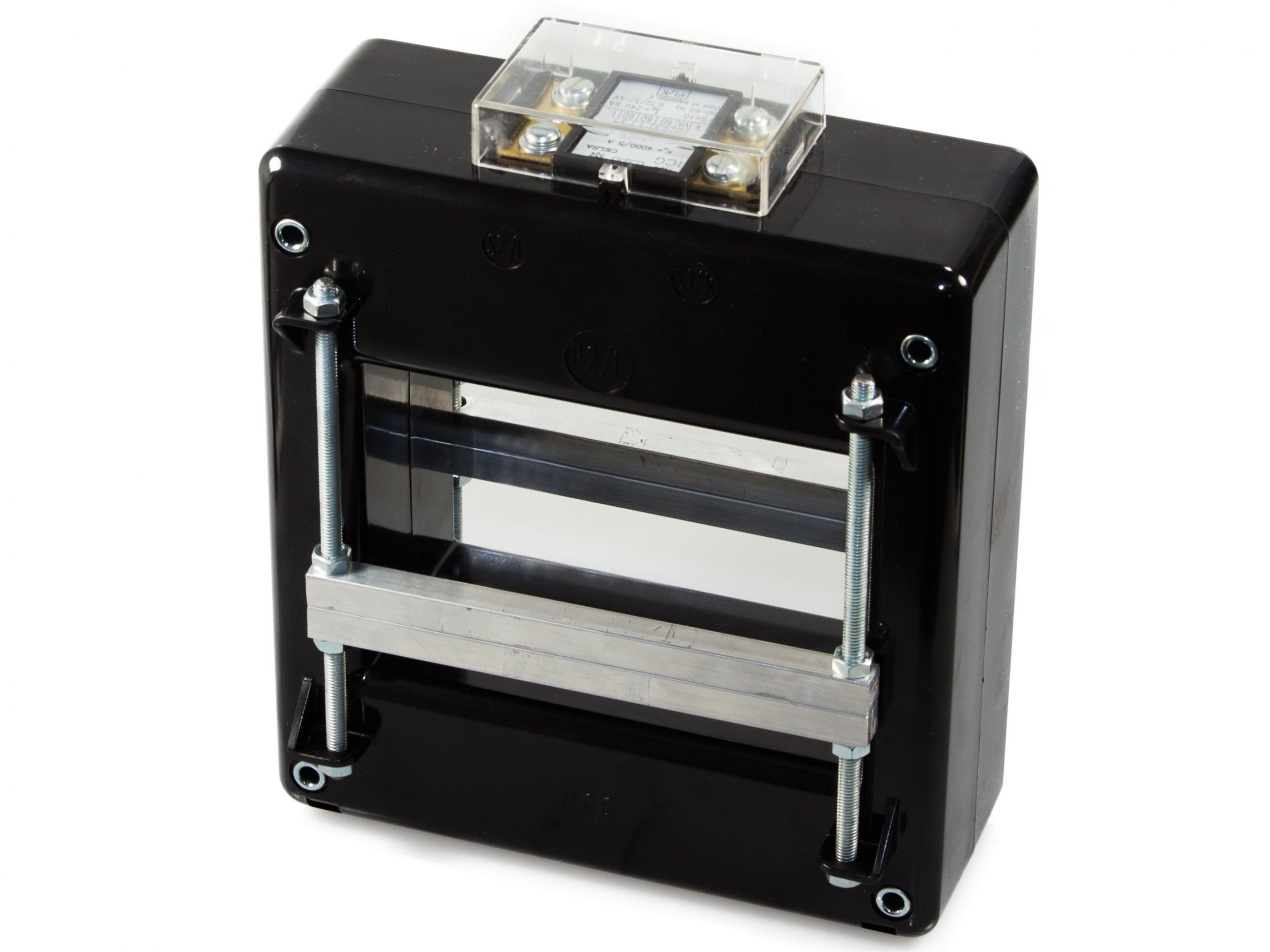

ICG

ICG

WINDOW TYPE CURRENT TRANSFORMER

Dimensions 228 x 190 x 103 mm
Primary bar 3 x 130 x 20 mm / 4 x 130 x 10 mm
Range 3000...6000 A
TECHNICAL DATA
DOWNLOAD
GENERAL CHARACTERISTICS
DOWNLOAD
Dimensions 228 x 190 x 103 mm
Primary bar 3 x 130 x 20 mm / 4 x 130 x 10 mm
Range 3000...6000 A

Categoría

IRP

IRP

Dimensions: 165 x 120 x 59 mm
Primary bar: 100 x 20 mm
Range: 750...2500 A
IBR-1

IBR-1

Dimensions: 115 x 90 x 40 mm
Primary bar: 60 x 12 mm / 2 x 50 x 10 mm
Round conductor: ⌀ 44 mm
Range: 400...1600 A
IBG

IBG

Dimensions: 105 x 76 x 38 mm
Primary bar: 40 x 10 mm
Round conductor: ⌀ 30 mm
Range: 150...1000 A
IB

IB

Dimensions: 105 x 76 x 38 mm
Primary bar: 30 x 10 mm
Round conductor: ⌀ 23 mm
Range: 50...600 A
