TQ42

TQ42

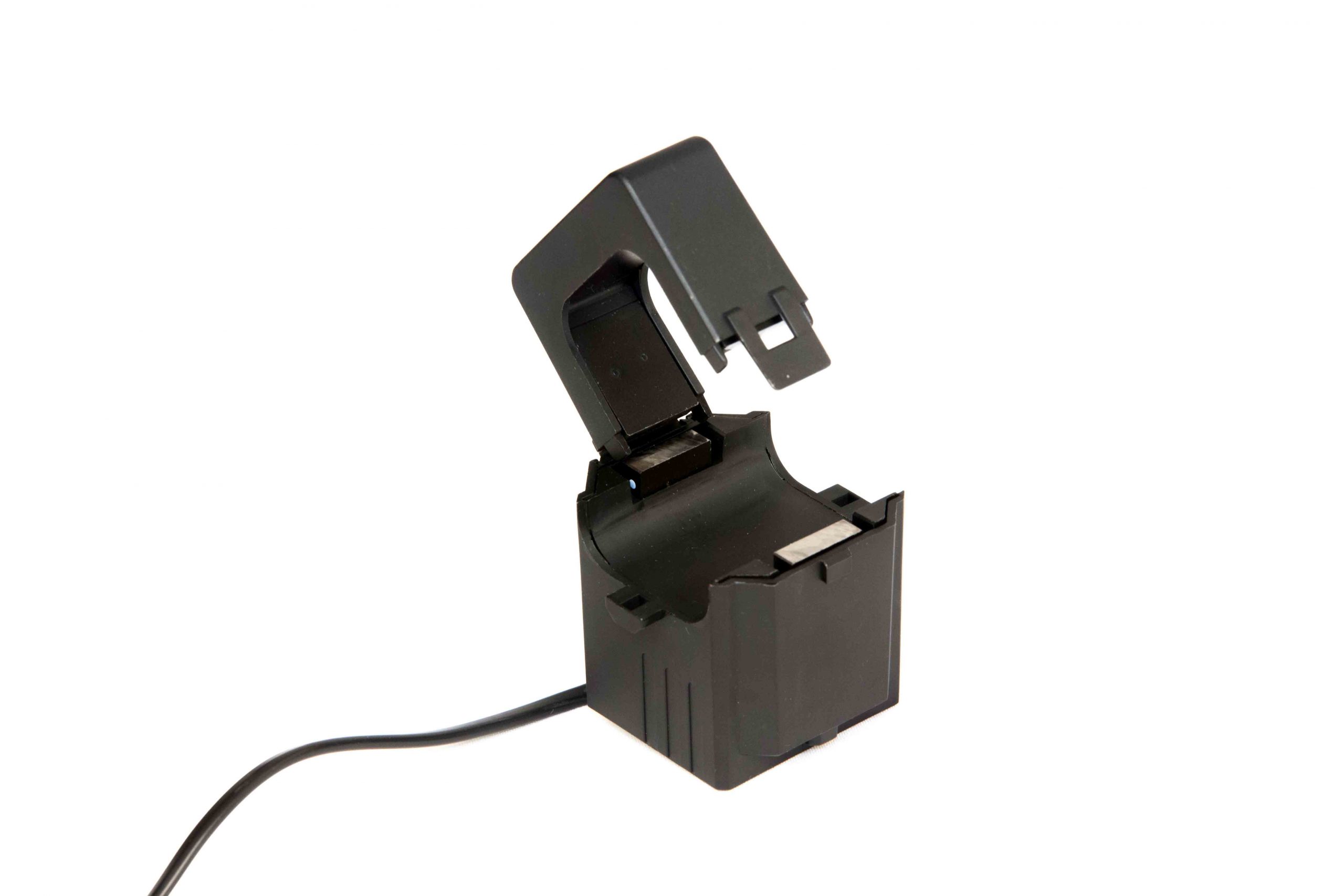

SPLIT CORE CURRENT TRANSFORMER

Dimensions 66 x 97 x 54.6 mm
Round conductor ⌀ 42 mm
Range 5A 400...1000 A
Range 1A 250...1000 A
TECHNICAL DATA
DOWNLOAD
Dimensions 66 x 97 x 54.6 mm
Round conductor ⌀ 42 mm
Range 5A 400...1000 A
Range 1A 250...1000 A
