Transformadores de intensidad Línea AST





LinkDimensionesBarra PrimariaCable ConductorRango
ASTR1451 x 70 x 32 mm⌀ 14 mm40...300 A
ASTR2144 x 66 x 30 mm⌀ 21 mm50...500 A
ASTMR2160 x 80 x 30 mm⌀ 21 mm50...500 A
AST210s50 x 70 x 34 mm20 x 10 mm50...300 A
AST22062 x 78 x 40 mm20 x 10 mm⌀ 12 mm50...500 A
AST255s50 x 70 x 34 mm20 x 5 mm⌀ 21 mm50...300 A

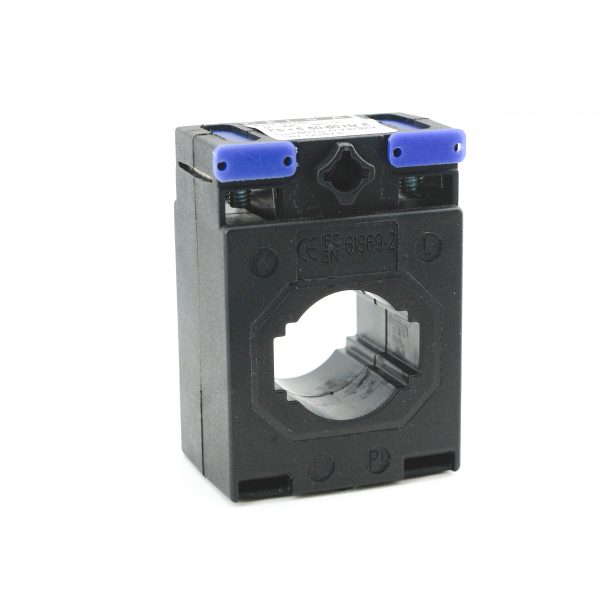

AST310s50 x 70 x 34 mm30 x 10 mm50...600 A
AST3R3060 x 80 x 30 mm⌀ 30 mm100...800 A
AST31060 x 80 x 30 mm30 x 10 mm50...800 A
AST31560 x 80 x 30 mm30 x 15 mm50...750 A

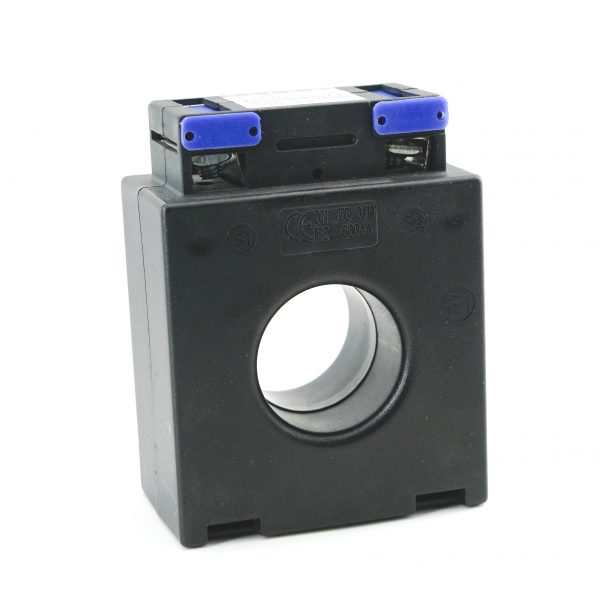

AST4R3068 x 87 x 40 mm⌀ 30 mm60...600 A
AST4B31268 x 87 x 40 mm30 x 10 mm⌀ 30 mm60...600 A
AST5R3075 x 100 x 45 mm⌀ 30 mm50...600 A
AST5B31275 x 100 x 45 mm30 x 10 mm⌀ 26 mm50...600 A
AST4R4070 x 90 x 30 mm⌀ 40 mm150...1000 A
AST41270 x 90 x 30 mm2 x 30 x 10 mm / 40 x 13 mm⌀ 33 mm125...1000 A
AST5B41270 x 100 x 45 mm2 x 30 x 10 mm / 40 x 13 mm⌀ 33 mm75...600 A
AST5R5080 x 108 x 30 mm⌀ 50 mm100...1000 A
AST51284 x 108 x 30 mm50 x 13 mm / 2 x 10 x 10 mm⌀ 42 mm100...1500 A
AST6R6596 x 121 x 30 mm⌀ 65 mm200...2000 A
AST615.585 x 108 x 30 mm60 x 15 mm / 2 x 50 x 10 mm / 40 x 40 mm⌀ 52 mm200... 1600 A
AST61596 x 121 x 30 mm60 x 15 mm / 2 x 50 x 10 mm / 40 x 40 mm⌀ 53 mm200... 2000 A
AST64096 x 132 x 30 mm80 x 15 mm / 2 x 60 x 10 mm / 3 x 50 x 10 mm⌀ 61 mm200... 2000 A
AST815105 x 132 x 30 mm80 x 15 mm / 2 x 60 x 10 mm / 3 x 50 x 10 mm⌀ 61 mm400... 2500 A
AST830105 x 116 x 30 mm2 x 80 x 10 mm / 60 x 60 mm⌀ 70 mm400... 2500 A
AST830V105 x 132 x 30 mm2 x 80 x 10 mm / 60 x 50 mm⌀ 70 mm400... 2500 A
AST1030131 x 144 x 30 mm2 x 100 x 10 mm / 80 x 64 mm⌀ 85 mm600... 3200 A
AST1030V131 x 144 x 30 mm2 x 100 x 10 mm / 75 x 60 mm⌀ 85 mm600... 3200 A
AST1056131 x 160 x 30 mm80 x 15 mm / 2 x 60 x 10 mm⌀ 61 mm600... 3200 A
AST1256165 x 129 x 40 mm125 x 60 mm600... 4000 A
AST1256V129 x 165 x 40 mm125 x 60 mm600... 4000 A
AST1656205 x 129 x 40 mm165 x 60 mm600... 5000 A
AST1656V129 x 205 x 40 mm165 x 60 mm600... 5000 A
AST1659223 x 155 x 35 mm165 x 90 mm800... 6000 A
AST1659V155 x 223 x 35 mm165 x 90 mm800... 6000 A
AST2065265 x 135 x 35 mm205 x 65 mm800... 6000 A
AST2065V135 x 265 x 35 mm205 x 65 mm800... 6000 A
AST3WST60 x 80 x 30 mm5...30 A
AST4WST60 x 87 x 40 mm5...30 A
AST4WPL668 x 87 x 40 mm5...30 A
AST5WPL675 x 100 x 45 mm5...30 A
AST5WPL875 x 100 x 45 mm50...100 A
AST5WPL1075 x 100 x 45 mm80...100 A
